NUT RIVETER:
1. SCREW THE CORRECT SIZE MANDREL INTO THE TOOL BODY, YOU MAY USE
THE WRENCH TO SCREW THE MANDREL TIGHTLY.
2. SCREW THE CORRECT SIZE NUT-NOSEPIECE INTO THE NUT-HEAD.
3. TO BORE A RIVET HOLE IN WORKPIECE.
4. OPEN TOOL HANDLE.
5. SCREW RIVET NUT ON THE HEAD OF MANDREL.
6. INSERT THE RIVET NUT INTO WORKPIECE.
7. SQUEEZE TOOL HANDLE AND THAT WILL MAKE RIVET NUT TIGHTLY CLENCH THE
WORKPIECE.
8. UNSCREW THE MANDREL FROM RIVET NUT BY TURNING THE MANDREL KNOB
COUNTERCLOCKWISE.
9. NOW YOU CAN FASTEN A SCREW IN THE MATERIAL WITH THE RIVET NUT.
SWITCH TO BLIND RIVETER FUNCTION:
1. USE 2.5 MM HEX KEY TO UNSCREW 4MM SCREW IN MANDREL KNOB.
2. SCREW OUT THE MANDREL KNOB.
3. SCREW OUT NUT-HEAD WITH NOSEPIECE FROM BODY.
4. TAKE OUT NUT RIVETER FUNCTION SET (MANDREL AND NUT-INNER BARREL)
FROM BODY.
FROM BODY.
5. PUT BLIND RIVETER FUNCTION SET INTO BODY.
6. SCREW THE HOLDER ON TAIL OF BLIND-INNER BARREL.
7. SCREW THE BLIND-HEAD INTO THE BODY.
8. SWITCH OPERATION FUNCTION COMPLETED.
BLIND RIVETER:
1. SELECT CORRECT SIZE BLIND-NOSEPIECE AND SCREW IT INTO BLIND-HEAD.
2. TO BORE RIVET HOLES IN BOTH WORKPIECE.
3. OPEN TOOL HANDLE.
4. INSERT THE RIVET MANDREL INTO BLIND-NOSEPIECE OF RIVETER.
5. PUSH RIVET INTO ALIGNED HOLES IN BOTH WORKPIECES.
6. SQUEEZE RIVETER HANDLES FIRMLY UNTIL RIVET MANDREL BREAKS AWAY
FROM RIVET.
FROM RIVET.
7. OPEN TOOL HANDLES TO DROP OUT THE USED MANDREL.

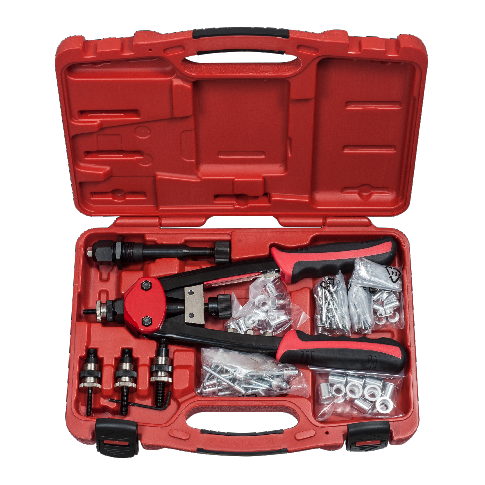

Contents:
- 1 PC HEAVY DUTY HAND RIVETER
- 4 PCS NOSE: 3.2 MM (1/8"), 4.0 MM (5/32"),
4.8 MM (3/16"), 6.4 MM (1/4") - 4 PCS MANDREL: M5, M6, M8, M10
- 80 PCS RIVETS: 3.2 MM (1/8") × 20, 4.0 MM (5/32") × 20,
4.8 MM (3/16") × 20, 6.4 MM (1/4") × 20 - 40 PCS RIVET NUTS: M5 × 10, M6 × 10, M8 × 10, M10 × 10
